Paturi & Saltele & Accesorii

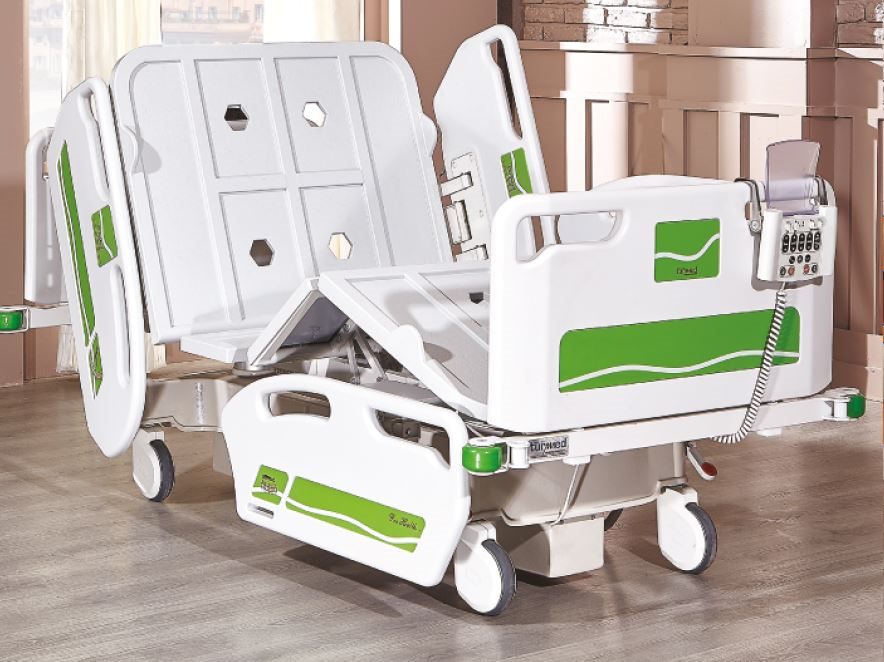

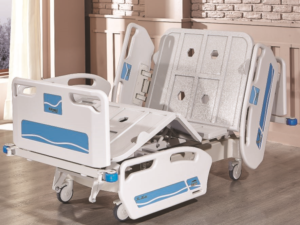

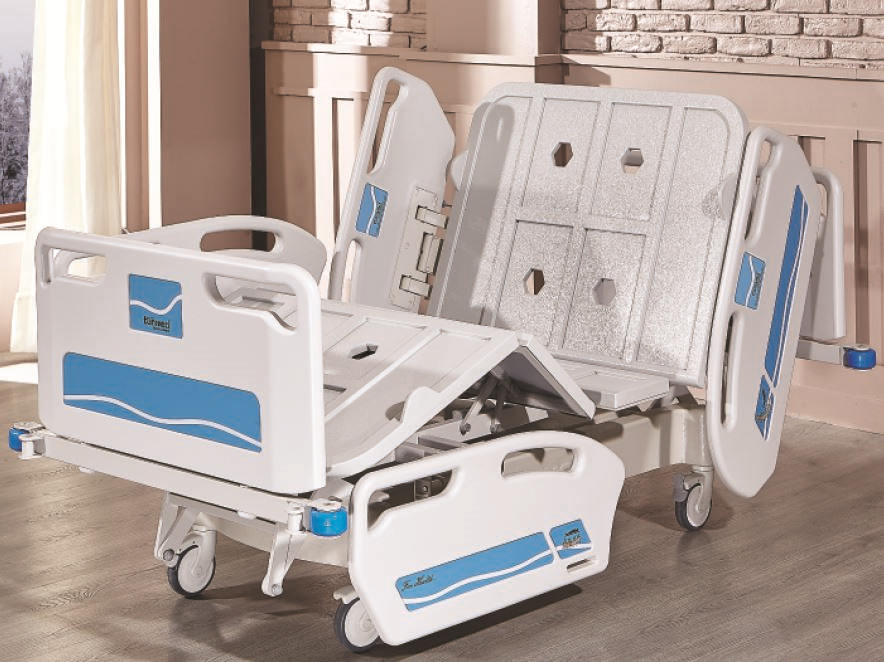

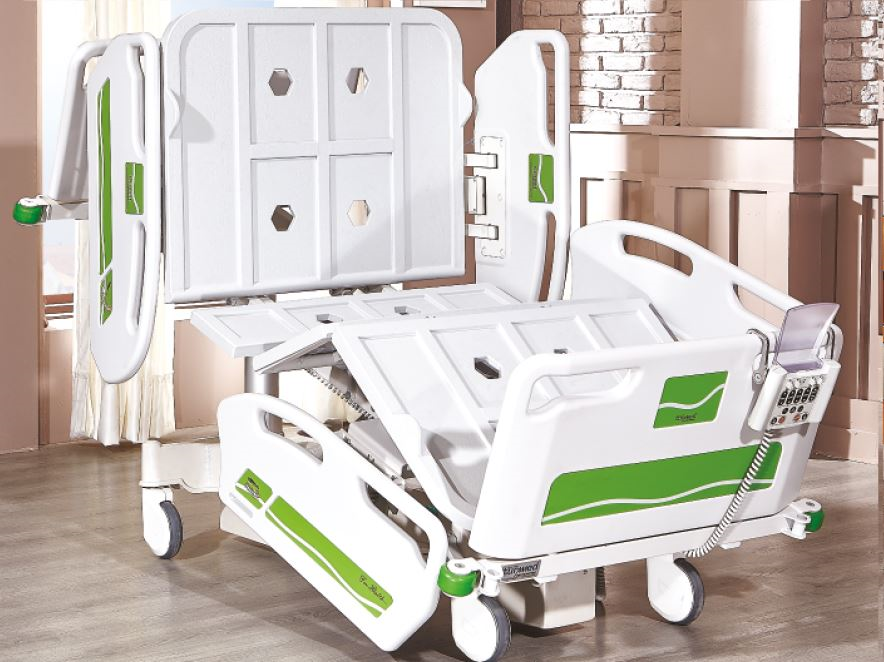

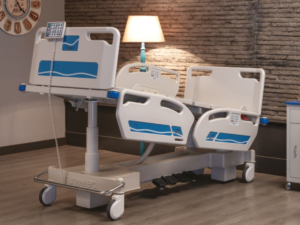

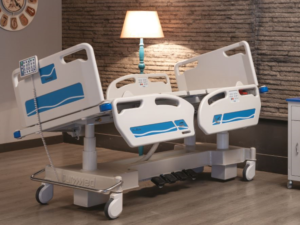

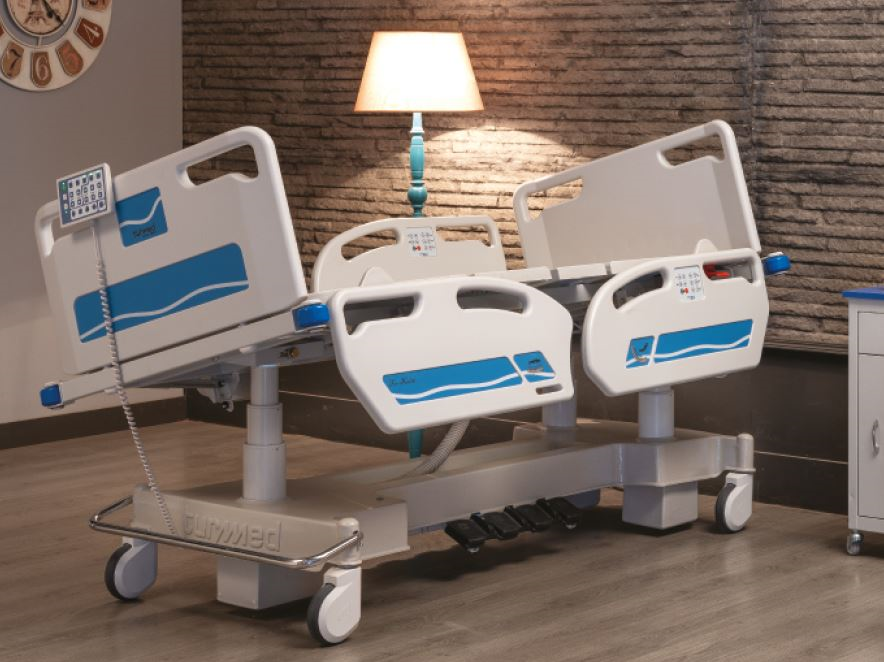

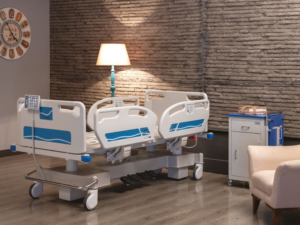

Unitate pacient terapie intensivă - 5 motoare
(CP: TM-D 4080) - Producător: Turmed
  • Height adjustment. (motor)
  • Backrest adjustment. (motor)
  • Thigh rest adjustment. (motor)
  • Footrest. (manuel)
  • Auto-regression system.
  • Lateral tilt. (motor)
  • Trendelenburg and reverse trendelenburg (motor).
  • Integrated side rail controls.
  • Nurse control panel with locking system.
  • Electronic CPR.
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • ABS Side Rails.

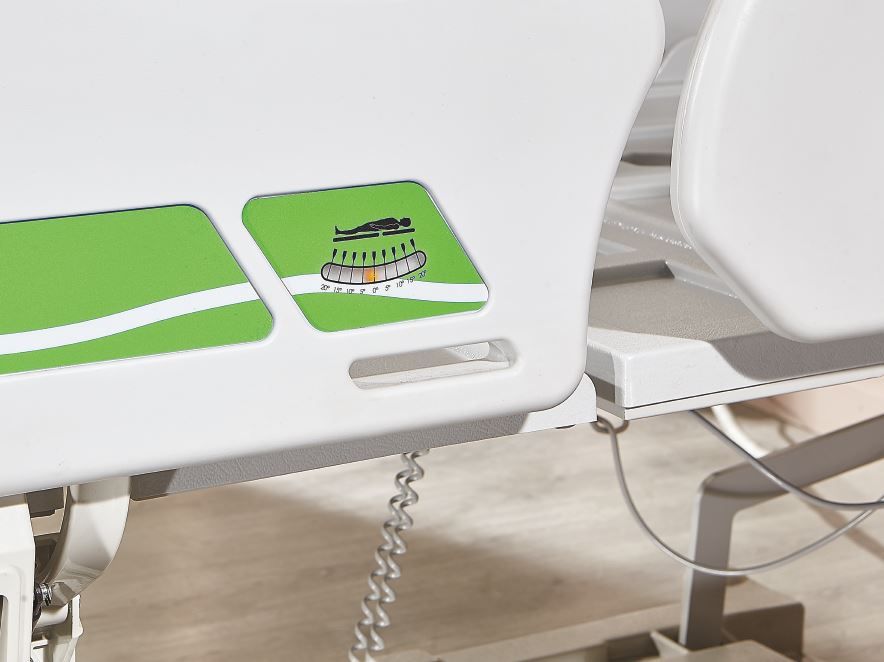

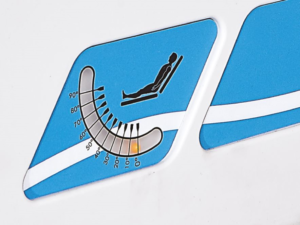

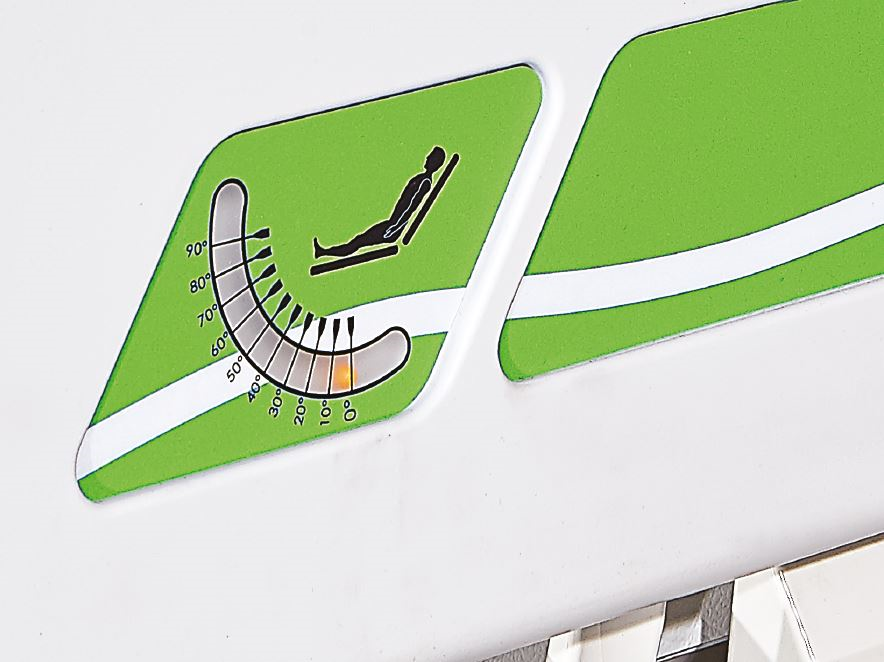

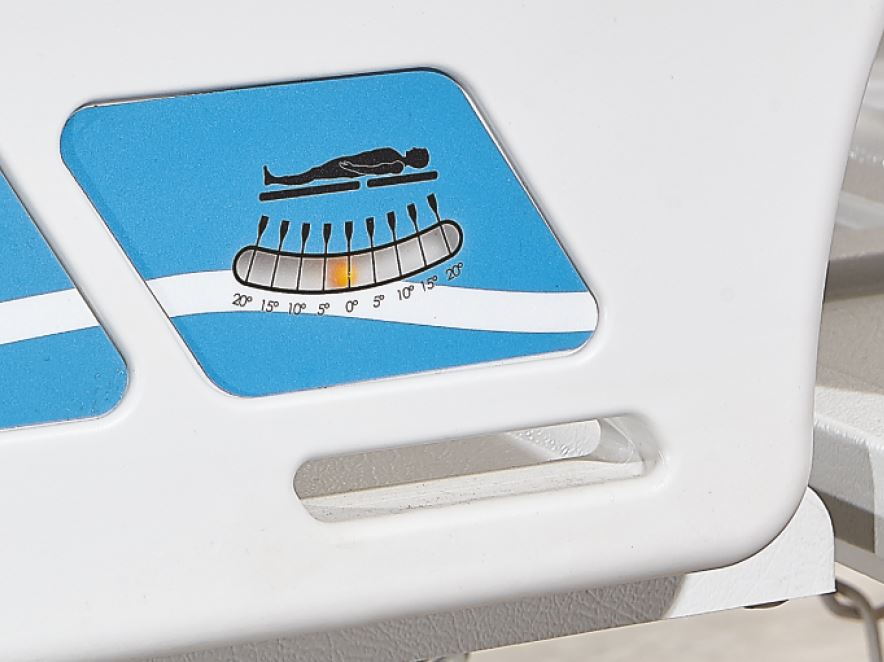

  • Angle indicator. (backrest,trendelenburg and tilt)
  • Battery.
  • IV pole. (height adjustable)
  • Accessories holders.
  • Castors with central brake and direction lock system.
  • Protective corner bumpers.
  • Electrostatic powder coated metal frame. (RAL 7035)
External Dimensions:2030 x 1070 mm
Mattress Platform :1900 x 900 mm
Height Adjustment :570 – 950 mm
Backrest max. angle:75°
Footrest max. angle :45°
Trendelenburg / Rev.trendelenburg:+ 12 ° / – 12 °
Lateral tilt:+ 17 ° / – 17 °
Auto-regression (Backrest– knee:75-50 mm
Height of side rails :380 mm
Height of head-foot boards :425 mm
Under bed clearence :160 mm
Castors diameter :150 mm
Safe working load :150 kg
Max.Loading capacity:300 kg
  • Weight scale system.
  • Bed length extension.
  • X-Ray cassette holder.(Backrest)
  • Manuel CPR at backrest.
  • Orthopedics traction frame.
  • Lifting Pole.

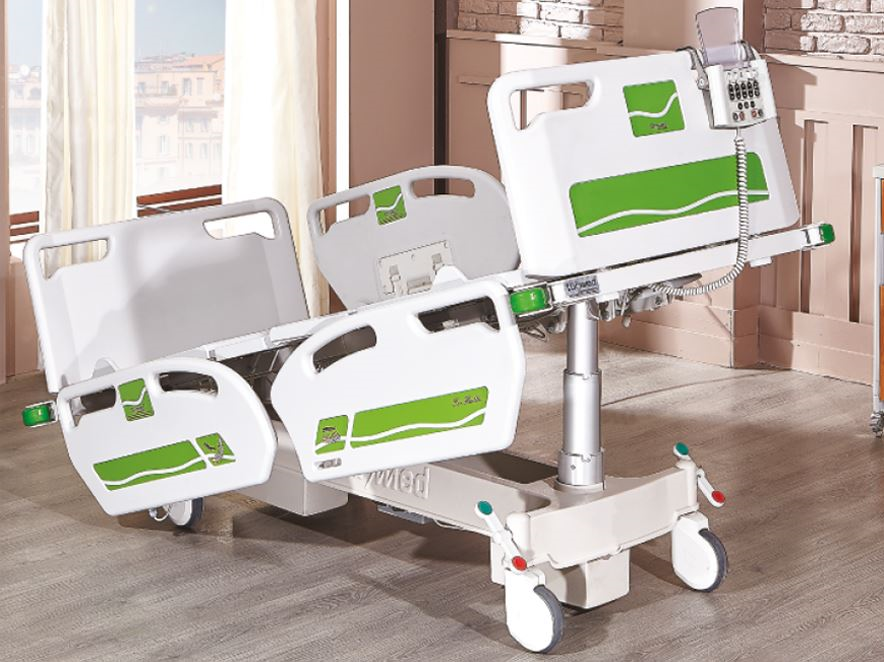

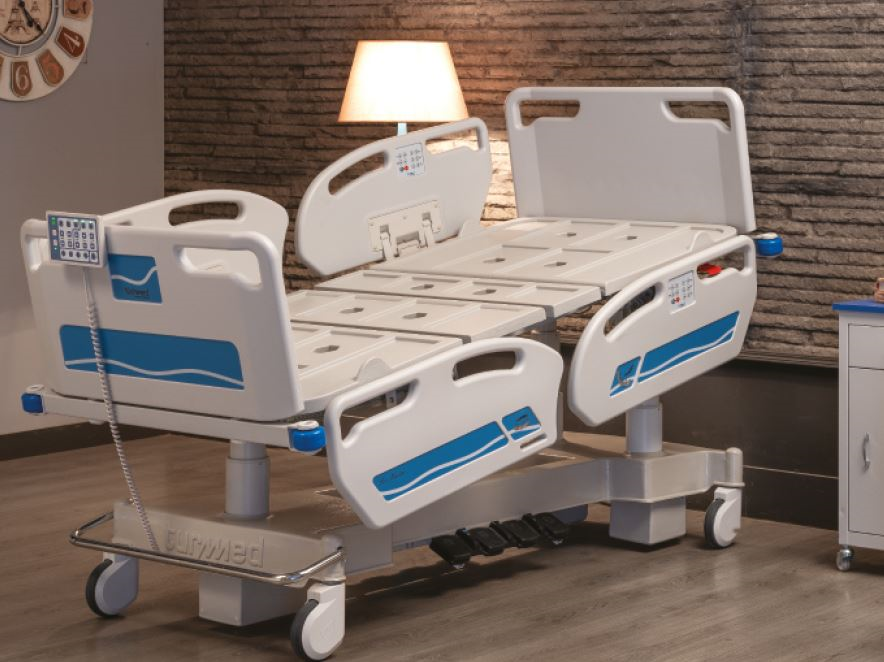

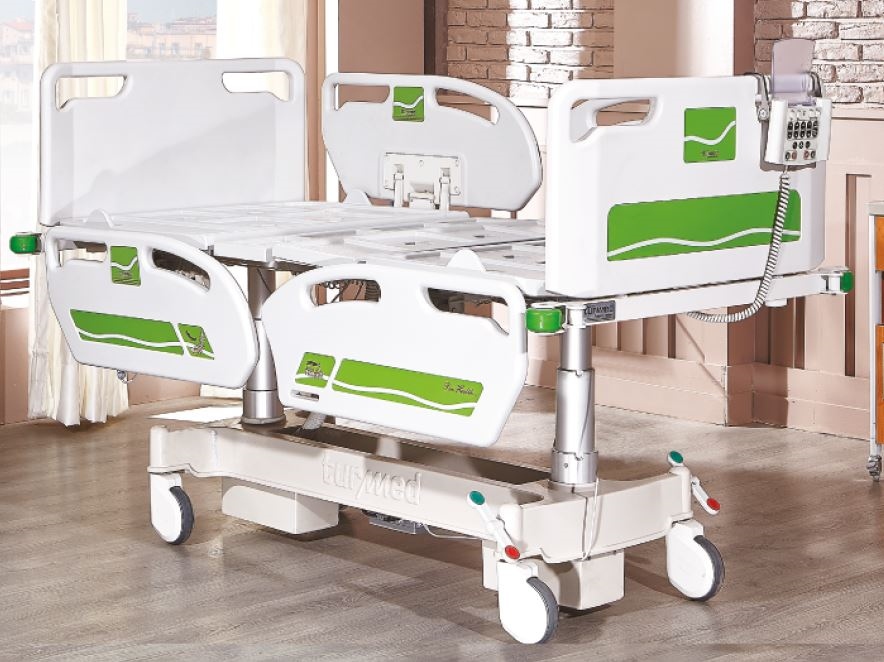

Unitate pacient terapie intensivă - 4 motoare
(CP: TM-D 4053) - Producător: Turmed
  • Height adjustment. (motor)
  • Backrest adjustment. (motor)
  • Thigh rest adjustment. (motor)
  • Footrest. (manuel)
  • Auto-regression system.
  • Trendelenburg and reverse trendelenburg. (motor)
  • Nurse control panel with locking system.
  • Electronic CPR.
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • ABS side rails.

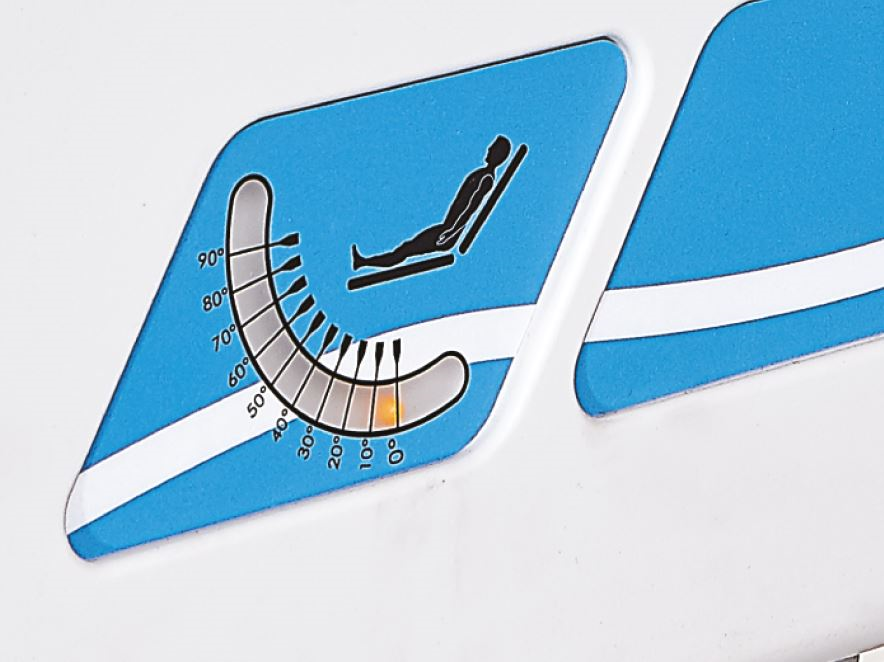

  • Angle indicator. (backrest, trendelenburg)
  • IV pole. (height adjustable)
  • Accessories holders.
  • Castors with central brake and direction lock system.
  • Protective corner bumpers.
  • Electrostatic powder coated frame. (RAL 7035)
External Dimensions:2030 x 1070 mm
Mattress Platform :1900 x 900 mm
Height Adjustment:500 – 900 mm
Backrest max. angle :70°
Footrest max. angle:40°
Trendelenburg / Rev.trendelenburg :+ 12 ° / – 12 °
Auto-regression (Backrest– knee) :75 – 50 mm
Height of side rails :370 mm
Height of head-foot boards :425 mm
Under-bed clearance :160 mm
Castors diameter :150 mm
Safe working load :150 kg
Max.Loading capacity:300 kg
  • Weight scale system.
  • Bed lenght extension.
  • Battery.
  • X-Ray cassette holder. (Backrest)
  • Manuel CPR at backrest.
  • Integrated side rail controls.
  • Handset control with magnetic lock.
  • Ortpedics traction frame.
  • Lifting Pole.

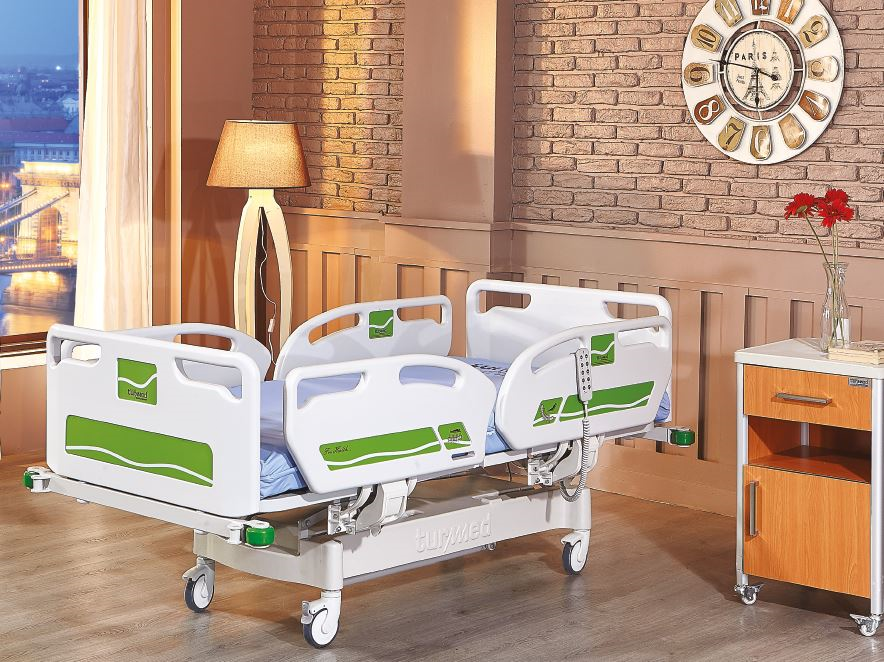

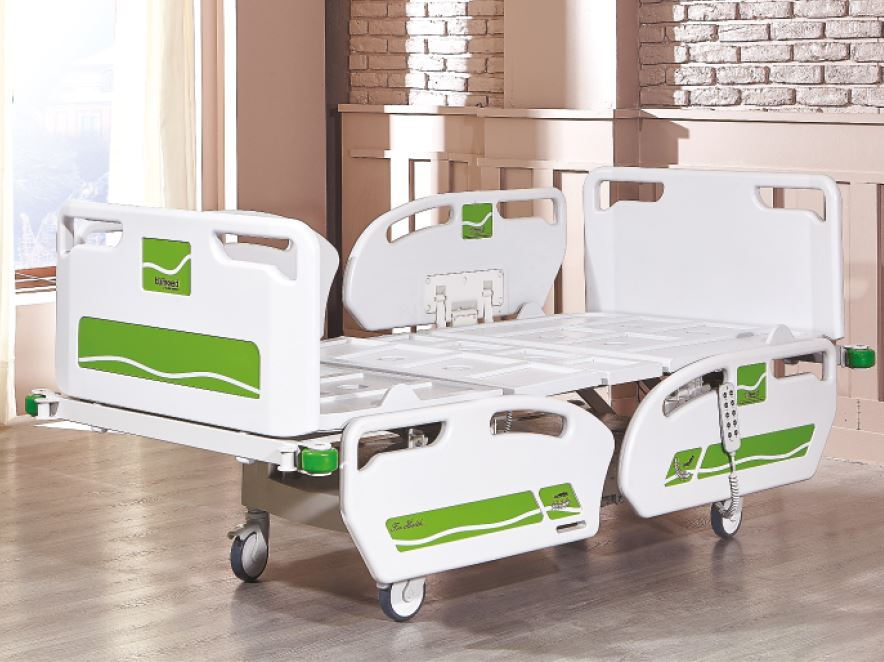

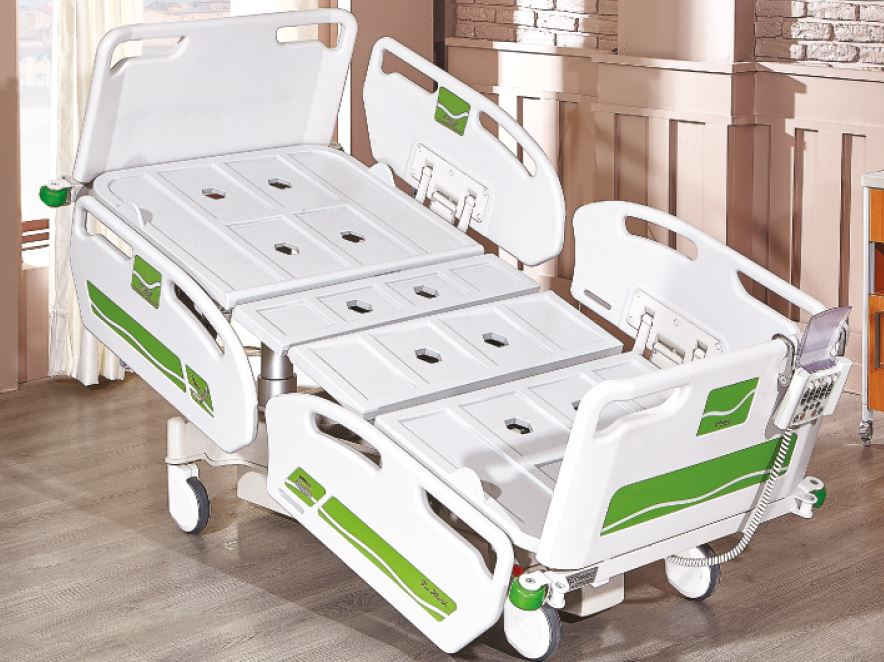

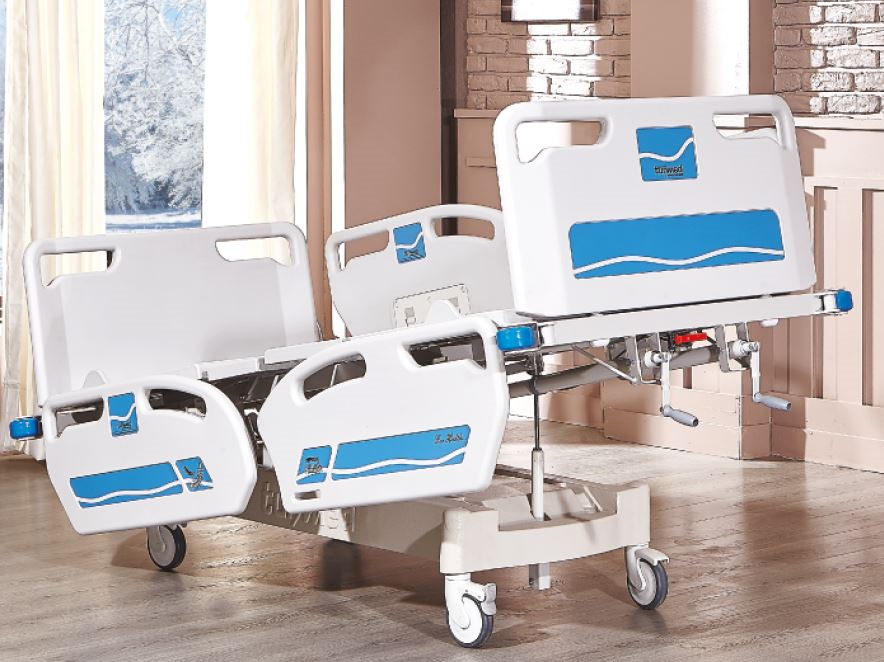

Pat pacient - 4 motoare (CP: TM-D 4056)
Producător: Turmed
  • Height adjustment. (motor)
  • Backrest adjustment. (motor)
  • Thigh rest adjustment. (motor)
  • Footrest. (manuel)
  • Auto-regression system.
  • Trendelenburg and reverse trendelenburg (motor).
  • Handset control.
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • ABS Side Rails.
  • Angle indicator. (backrest,trendelenburg)
  • IV pole. (height adjustable)
  • Accessories holders.
  • Castors two with break.
  • Protective corner bumpers.
  • Electrostatic powder coated frame. (RAL 7035)
External Dimensions :2030 x 1070 mm
Mattress Platform :1900 x 900 mm
Height Adjustment :440 – 750 mm
Backrest max. angle :70°
Footrest max. angle :40°
Trendelenburg / Rev.trendelenburg:+ 12° / – 12°
Auto-regression (Backrest– knee):75 – 50 mm
Height of side rails :370 mm
Height of head-foot boards :425 mm
Under-bed clearance :160 mm
Castors diameter :125 mm



  • Weight scale system.
  • Bed length extension.
  • Battery.
  • X-Ray cassette holder.(Backrest)
  • Manuel CPR at backrest.
  • Integrated side rail controls.
  • Handset control with magnetic lock.
  • Orthopedics traction frame.
  • Lifting Pole.
  • Nurse control.
  • Central lock castors.

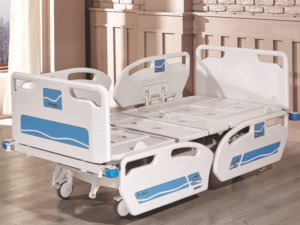

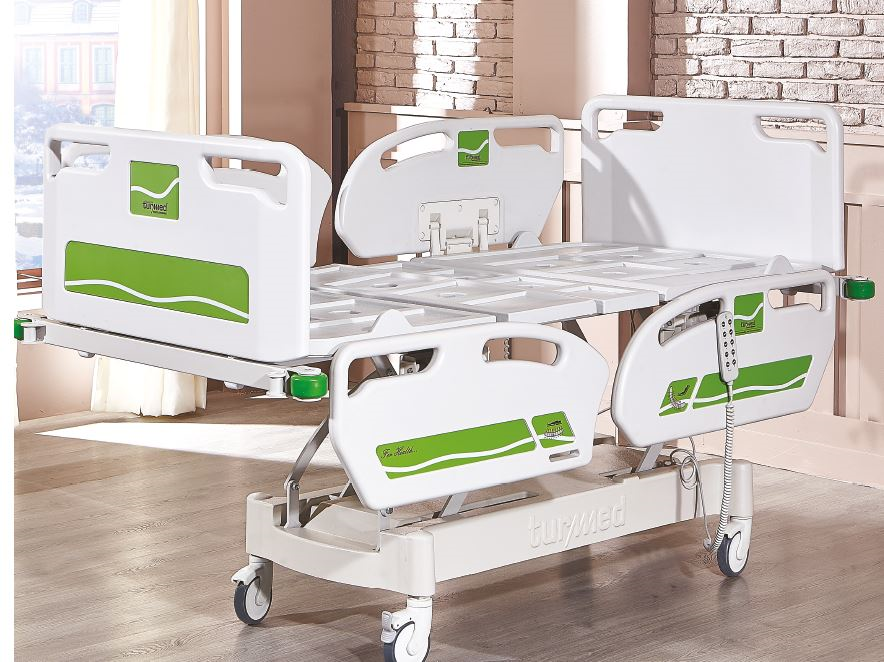

Pat pacient - 3 motoare (CP: TM-D 4055)
Producător: Turmed
  • Height adjustment. (motor)
  • Backrest adjustment. (motor)
  • Thigh rest adjustment. (motor)
  • Footrest. (manuel)
  • Auto-regression system.
  • Handset control.
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • ABS Side Rails.
  • Angle indicator. (backrest)
  • IV pole. (height adjustable)
  • Accessories holders.
  • Castors two with break.
  • Protective corner bumpers.
  • Electrostatic powder coated frame. (RAL 7035)
External Dimensions:2030 x 1070 mm
Mattress Platform:1900 x 900 mm
Height Adjustment :510 – 790 mm
Backrest max. angle :70°
Footrest max. angle :40°
Auto-regression (Backrest– knee) :75 – 50 mm
Height of side rails :370 mm
Height of head-foot boards :425 mm
Under – bed clearance :160 mm
Castors diameter :125 mm
Safe working load :150 kg
Max.Loading capacity:300 kg
  • Weight scale system.
  • Bed length extension.
  • Battery.
  • X-Ray cassette holder.(Backrest)
  • Manuel CPR at backrest.
  • Integrated side rail controls.
  • Handset control with magnetic lock.
  • Orthopedics traction frame.
  • Lifting Pole.
  • Nurse control .
  • Central lock castors

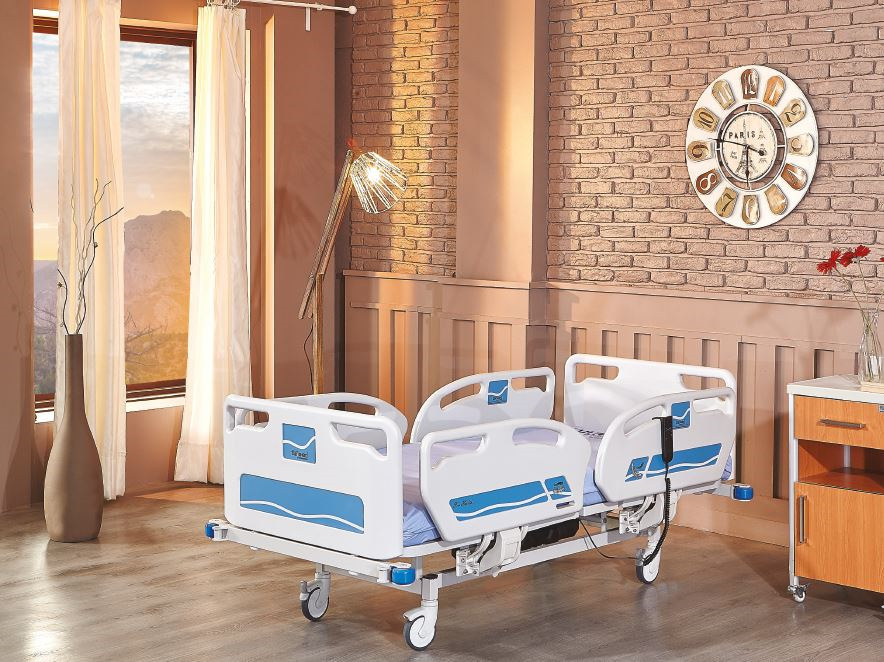

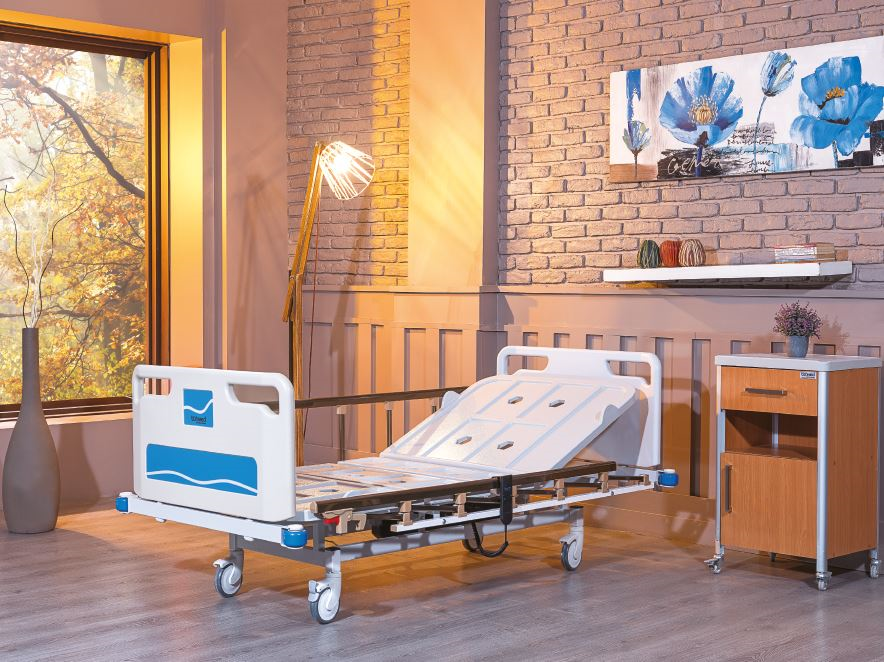

Pat pacient - 2 motoare (CP: TM-D 4062)
Producător: Turmed
  • Backrest adjustment. (motor)
  • Thigh rest adjustment. (motor)
  • Footrest. (manuel)
  • Auto-regression system.
  • Handset control.
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • ABS Side Rails.
  • Angle indicator. (backrest)
  • IV pole. (height adjustable)
  • Accessories support.
  • Castors two with break.
  • Protective corner bumpers.
  • Electrostatic powder coated frame. (RAL 7035)
External Dimensions:2030 x 1070 mm
Mattress Platform :1900 x 900 mm
Height:400 mm
Backrest max. angle :70°
Footrest max. angle:40°
Auto-regression (Backrest) :75 mm
Height of side rails :370 mm
Height of head-foot boards :425 mm
Under-bed clearance:175 mm
Castors diameter:125 mm
Safe working load :150 kg
Max.Loading capacity :300 kg
  • Weight scale system.
  • Bed length extension.
  • Orthopedics traction frame.
  • Lifting Pole.
  • Central lock castors

Pat pacient - 2 motoare (CP: TM-D 4060)
Producător: Turmed
  • Backrest adjustment. (motor)
  • Thigh rest adjustment. (motor)
  • Footrest. (manuel)
  • Handset control.
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • Aluminium side rails.
  • IV pole. (height adjustable)
  • Accessories holders.
  • Castors two with break.
  • Protective corner bumpers.
  • Electrostatic powder coated frame. (RAL 7035)
External Dimensions :2030 x 1070 mm
Mattress Platform :1900 x 900 mm
Height:400 mm
Backrest max. angle :70°
Footrest max. angle :40°
Height of side rails :285 mm
Height of head-foot boards :425mm
Under-bed clearance :175 mm
Castors diameter :125 mm
Safe working load :150 kg
Max.Loading capacity :300 kg

•Weight scale system.

• Bed length extension.

• Orthopedics traction frame.

• Lifting Pole.

• Central lock castors.

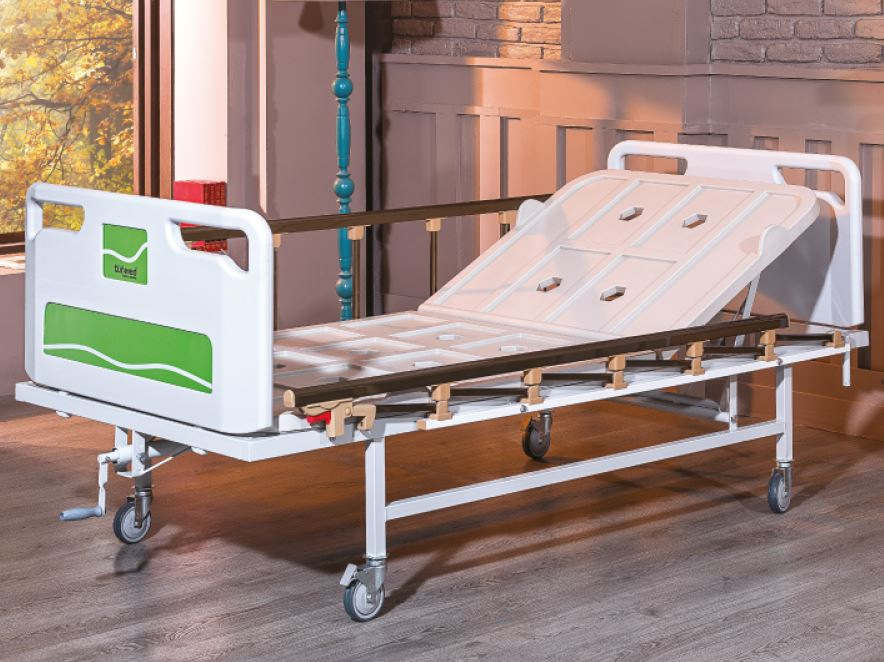

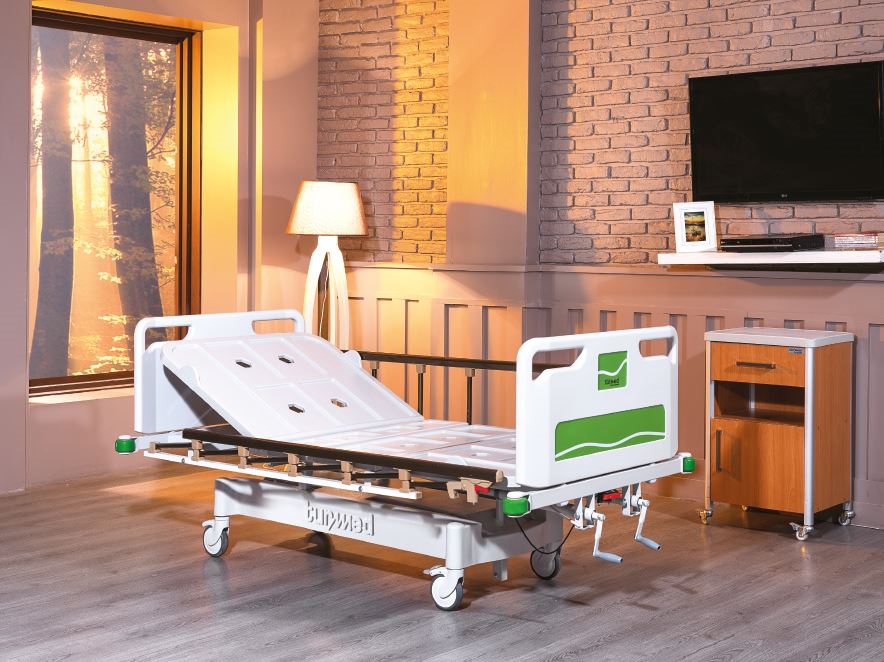

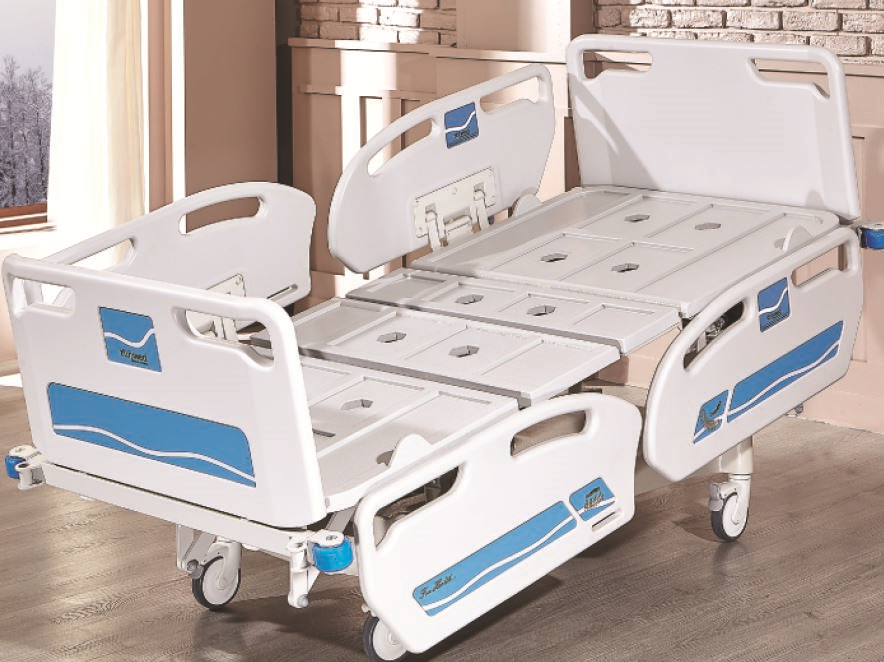

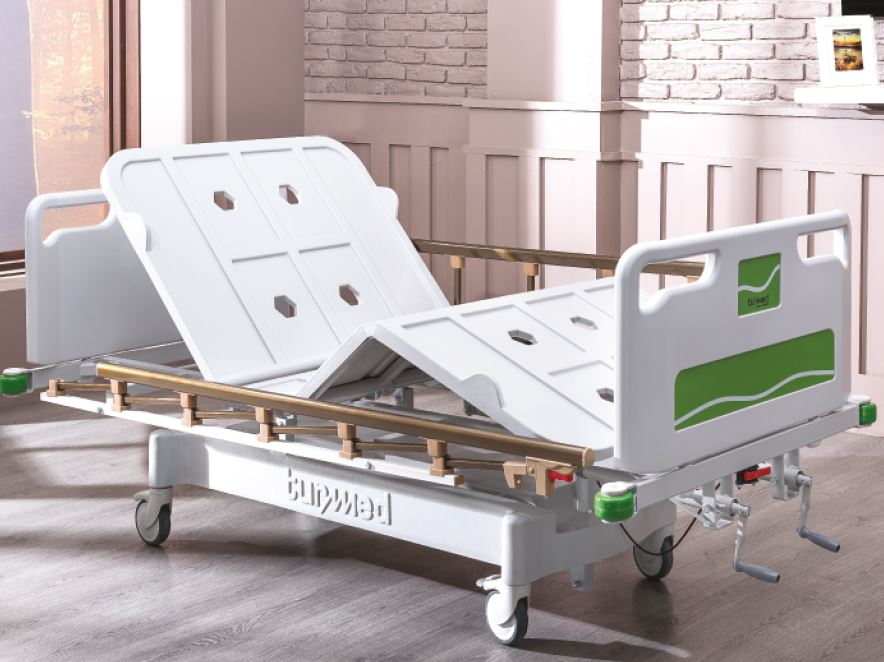

Pat pacient - 3 setări manuale (CP: TM-D 4071)
Producător: Turmed
  • Backrest adjustment. (manuel)
  • Thigh rest adjustment. (manuel)
  • Footrest. (manuel)
  • Trendelenburg (gas piston).
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • Aluminium side rails.
  • IV pole. (height adjustable)
  • Accessories holders.
  • Castors two with break.
  • Protective corner bumpers.
  • Electrostatic powder coated frame. (RAL 7035)
External DimensionS:2030 x 1070 mm
Mattress Platform:1900 x 900 mm
Height:500 mm
Backrest max. angle :70°
Footrest max. angle :40°
Trendelenburg :+ 12 °
Height of side rails :285 mm
Height of head-foot boards :425 mm
Under-bed clearance :160 mm
Castors diameter :125 mm
Safe working load :150 kg
Max.Loading capacity :300 kg
  • Orthopedics traction frame.
  • Lifting Pole.
  • Central lock castors

Pat pacient - 3 setări manuale (CP: TM-D 4070)
Producător: Turmed
  • Backrest adjustment. (manuel)
  • Thigh rest adjustment. (manuel)
  • Footrest. (manuel)
  • Auto-regression system.
  • Trendelenburg (gas piston).
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • ABS Side Rails.
  • Angle indicator. (backrest,trendelenburg)
  • IV pole. (height adjustable)
  • Accessories holders.
  • Castors two with break.
  • Protective corner bumpers.
  • Electrostatic powder coated frame. (RAL 7035)



External Dimensions:2030 x 1070 mm
Mattress Platform:1900 x 900 mm
Height:500 mm
Backrest max. angle :70°
Footrest max. angle :40°
Trendelenburg :+ 12 °
Auto-regression (Backrest– knee) :75 – 50 mm
Height of side rails :370 mm
Height of head-foot boards :425 mm
Under-bed clearance :160 mm
Castors diameter :125 mm
Safe working load :150 kg
Max.Loading capacity :300 kg
  • Orthopedics traction frame.
  • Lifting Pole

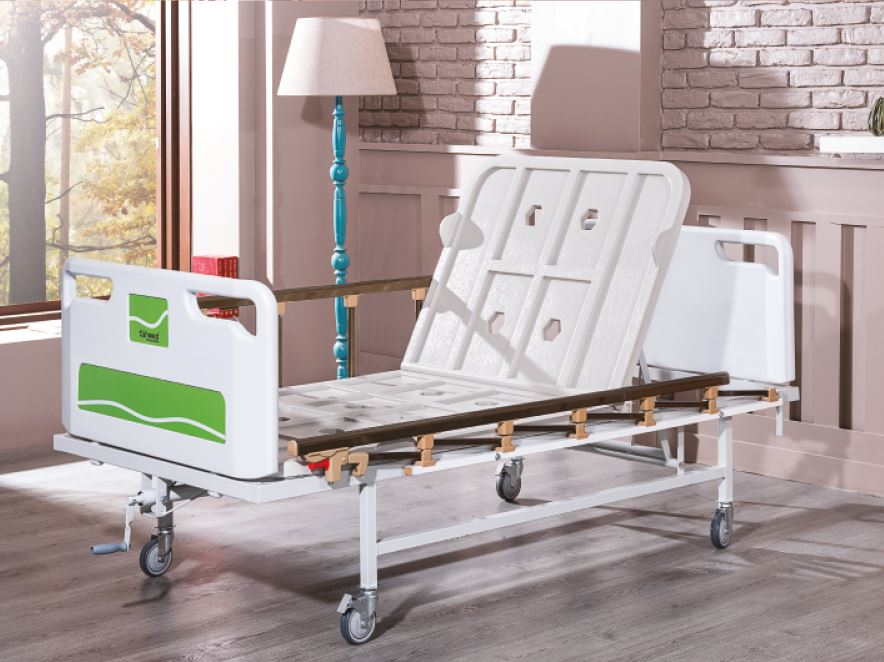

Pat pacient - 1 setare manuală (CP: TM-D 4067)
Producător: Turmed
  • Backrest adjustment.(manuel)
  • ABS mattress platform. (detachable)
  • ABS head and foot boards. (detachable)
  • Aluminium side rails.
  • IV pole. (height adjustable)
  • Castors two with break.
  • Electrostatic powder coated frame. (RAL 7035)
External Dimensions:1980 x 975 mm
Mattress Platform :1900 x 900 mm
Height:460 mm
Backrest max. angle :70°
Height of side rails :285 mm
Height of head-foot boards :425mm
Under-bed clearance :200 mm
Castors diameter :100 mm
Safe working load :120 kg
Max.Loading capacity :250 kg
  • Orthopedics traction frame.
  • Lifting Pole.
  • Central lock castors.

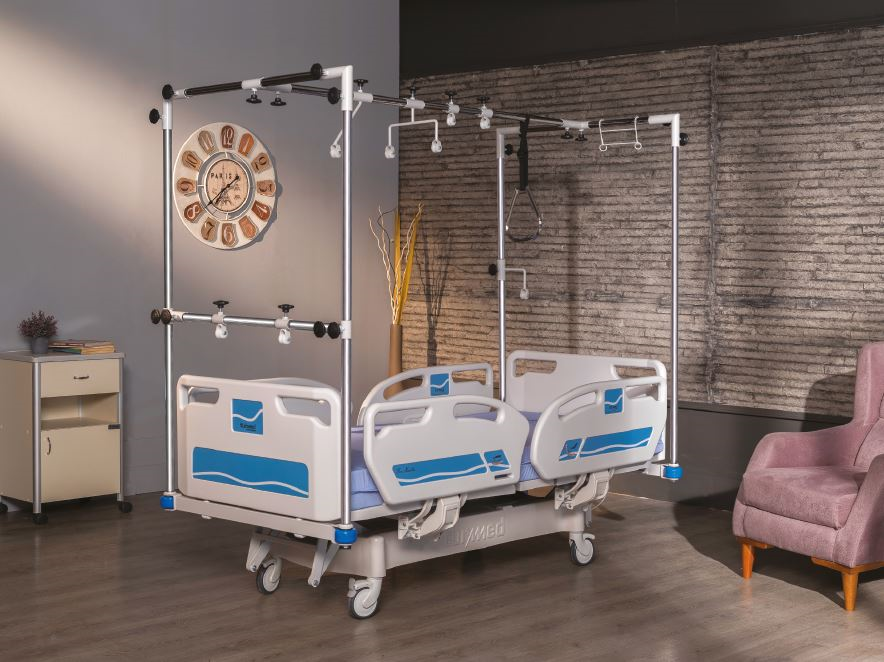

Cadru ortopedic tracțiune(CP: TM-D 4036)
Producător: Turmed
  • Bearing columns. (chrome covered)
  • Connection parts. (painted)
  • 2 pcs weight pulling roller at the foot end.
  • Lifting pole.
  • U pulling roller.
  • 2 pcs weight transfer roller at the top beam.
  • IV pole.
  • Detachable.
  • Excludes the bed

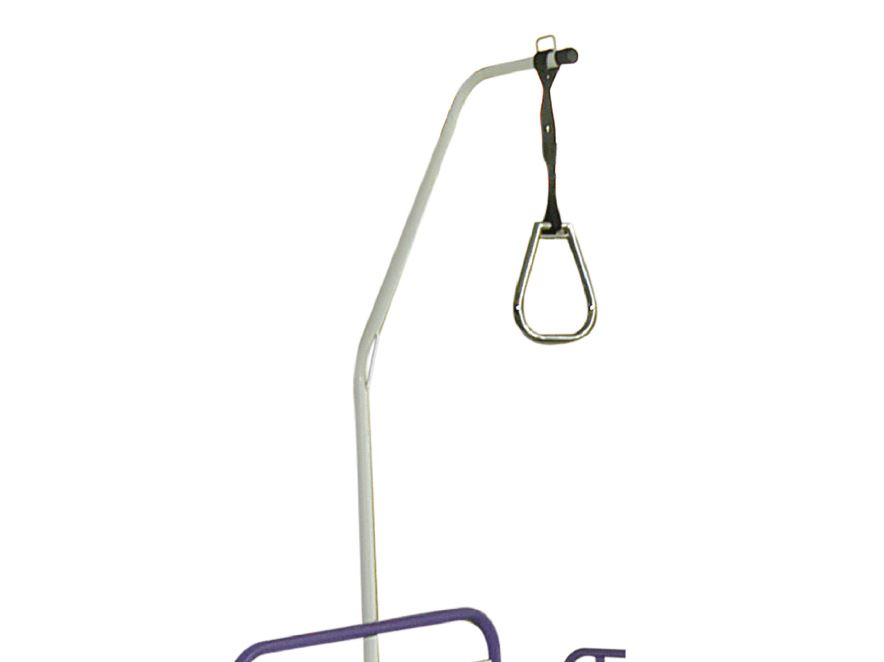

Stâlp ridicare (CP: TM-D 4035)
Producător: Turmed
  • Lifting pole. (chrome covered)
  • Bearing column. (painted)
  • Detachable

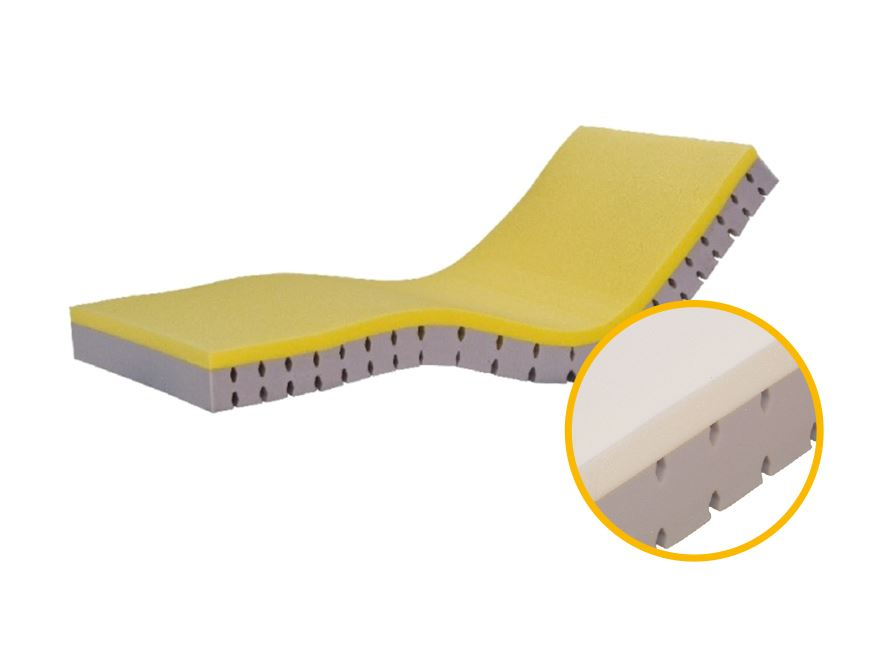

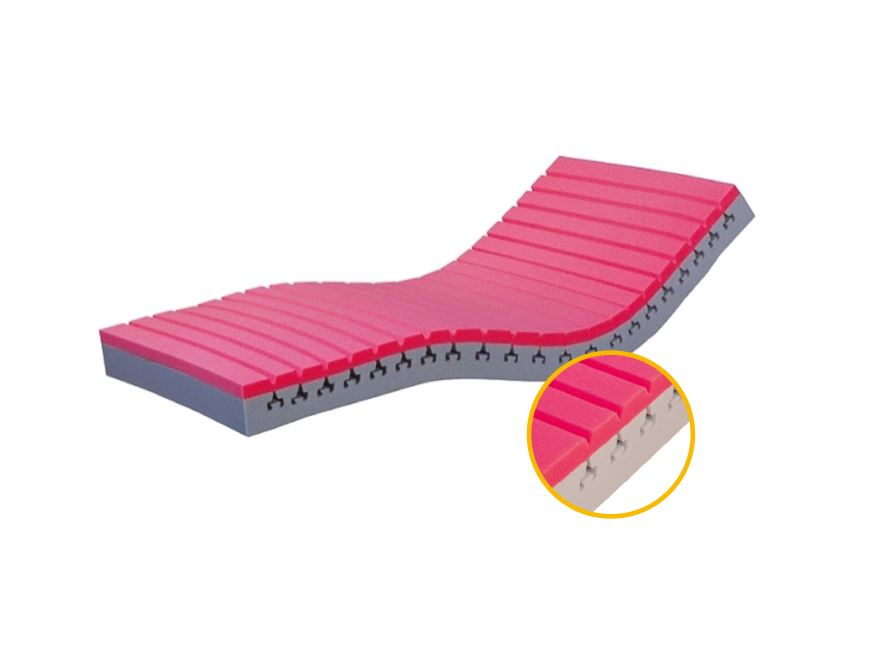

Saltea Anti Decubitus(CP: TM-D 4078)
Producător: Turmed
  • Anti fungal
  • Anti mite
  • Cover; waterproof.
  • Cover; zip over two sides of.
  • Cover; antibacterial.
  • Cover; flame retardant BS7175
  • Cover; PVC free PU.
  • Upper layer; 23 kg/m3 density.
  • Bottom layer; 32 kg/m3 density
Width:900 mm
Length:1900 mm
Height:140 mm

Saltea Anti Decubitus - visco
(CP: TM-D 4079)- Producător: Turmed
  • Anti fungal
  • Anti mite
  • Cover; waterproof.
  • Cover; zip over two sides of.
  • Cover; antibacterial.
  • Cover; flame retardant BS7175
  • Cover; PVC free PU.
  • Upper layer; 50 kg/m3 density.
  • Bottom layer; 32 kg/m3 density
Width:900 mm
Length:1900 mm
Height:140 mm

Saltea - CNC (CP: TM-D 4069)
Producător: Turmed
  • Cover; water resistant.
  • Cover; antibacterial.
  • Cover; zip over two sides.
  • Foam; 22 kg/m3 density.
Width:900 mm
Length:1900 mm
Height:140 mm
